| Fabricator SS, Vi-Stream Gantry Assembly Guide Side |

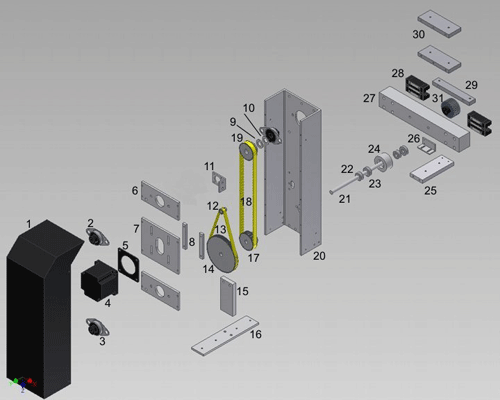

Click on diagram for larger image
|
| # in Diagram |
Part Number | Part Description |
Price |
|
|
| 1 | 00-0031-C | X Axis Belt Cover | $200.04 | Quantity |
| 2 | 6910 | Upper Drive Shaft Nice Bearing | $73.00 | Quantity |
| 3 | 6908 | Lower Drive Shaft Bearing | $75.50 | Quantity |
| 4 | HT34-474-001 | Stepper Motor - STEP MTR ASSY | $491.25 | Quantity |
| 5 | 00-1000-A | Motor Spacer | $37.81 | Quantity |
| 6 | 00-0008-A | Gantry Bearing Mount | $47.67 | Quantity |
| 7 | 00-0012-A | X Axis Motor Plate | $70.11 | Quantity |
| 8 | 00-0014-A | X Axis Motor Backing Nut | $30.83 | Quantity |
| 9 | TWB-1018 | Thrust Washer | $7.80 | Quantity |
| 10 | TRC-1018 | Thrust Washer | $6.00 | Quantity |
| 11 | 01-0020-A | X Axis Motor Cable Bracket | $29.70 | Quantity |
| 12 | 10XL037 x 3/8 | HVAC Carriage Motor Pulley | $80.67 | Quantity |
| 13 | 210XL037K | Carriage Belt | $21.20 | Quantity |
| 14 | 72XL037 x 5/8 | Stand Alone Drive Shaft Pulley | $64.11 | Quantity |
| 15 | 02-0089-A | Double Track Bracket End Mount | $37.81 | Quantity |
| 16 | 02-0088-B | Double Track Mounting Bracket | $46.85 | Quantity |
| 17 | 18L050x1/2 | Lower Drive Shaft Pulley,18 Tooth Pulley 1/2" Bore, 1/8"kw, Alum | $64.33 | Quantity |
| 18 | 322L050K | Shaft to Shaft Belt | $42.48 | Quantity |
| 18 | 345L050 | Shaft to Shaft Belt | $41.35 | Quantity |
| 19 | 18L050x5/8 | Upper Drive Shaft Pulley | $64.33 | Quantity |
| 20 | 11-0017-C | Gantry End Channel | $196.22 | Quantity |
| 21 | 00-0019-A | Gantry Lower Drive Shaft | $59.98 | Quantity |
| 22 | S25FY9-PC50031 | Fairloc Clamp Collar | $47.80 | Quantity |
| 23 | 77R8 | Lower Drive Shaft Bearing | $16.96 | Quantity |
| 24 | D-8H-00-002-0300-A | Bearing Housing | $49.07 | Quantity |
| 25 | 00-0016-A | X Axis Track Bracket | $21.04 | Quantity |
| 26 | 00-0015-A | Proxy Mounting Angle | $279.63 | Quantity |
| 27 | 00-0052-B | Linear Bearing Mounting Bar | $77.10 | Quantity |
| 28 | HGH20CAZ0C | Torch Holder Linear Car | $114.00 | Quantity |
| 29 | 00-0051-A | Linear Bearing Jack Bar | $21.04 | Quantity |
| 30 | 00-0009-A | Gantry End Channel Mounting Block | $47.67 | Quantity |
| 31 | 2040 X 1NS | 40 Tooth 1" wide 1/2" Bore Gear How to identify correct gear | $222.32 | Quantity |
|
