| Elite Gantry |

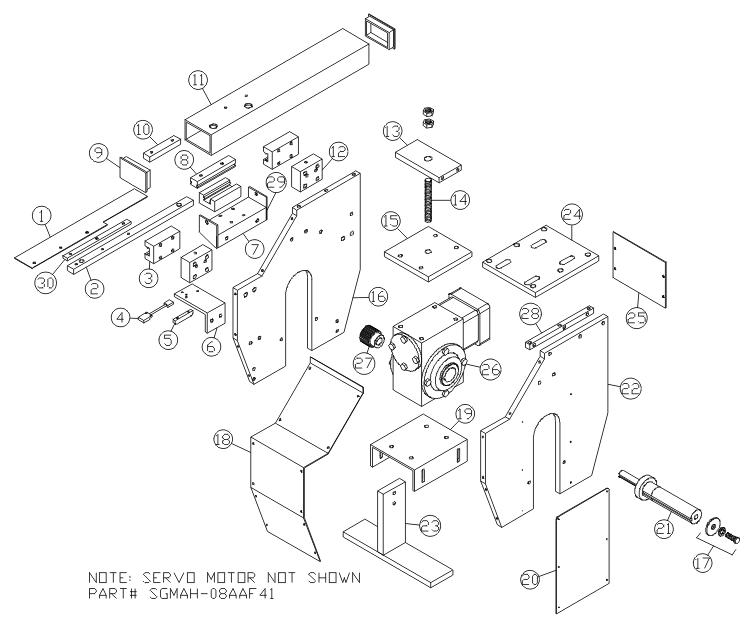

Click on diagram for larger image
|
| # in Diagram |
Part Number | Part Description |
Price |
|
|
| Note | SGMAH-08AAF41 | X Axis Yaskawa Motor | Call for price | |
| 1 | PA-000039 | Splatter Shield | $16.67 | Quantity |
| 2 | PA-000040 | Splatter Shield Mounting Bar | $20.00 | Quantity |
| 3 | HGH20CAZ0C | Torch Holder Linear Car | $114.00 | Quantity |
| 4 | E52-18RU04-C | Y Axis Proxy Switch | $384.09 | Quantity |
| 5 | D-8FH-00-003-0127-A | Proxy Switch Ski | $21.69 | Quantity |
| 6 | D-8H-00-010-0707-A | X Axis Proxy Mounting Bracket | $64.38 | Quantity |
| 7 | D-2DM-01-002-0743-A | Adjustment Car Mounting Angle | $52.67 | Quantity |
| 8 | D-2DM-01-002-0741-A | Adjustment Linear Bar | $95.08 | Quantity |
| 9 | PA-000038 | Plastic Tube Plug | $5.56 | Quantity |
| 10 | D-2DM-01-002-0742-A | Adjustment Linear Rail Backing Nut | $49.34 | Quantity |
| 11 | D-2DM-00-010-0726-A | Y Axis Track Tray Support | $66.75 | Quantity |
| 12 | D-2M-00-001-0001-A | Hiwin Spacer Block | $36.11 | Quantity |
| 13 | D-2DM-04-000-0006-A | Gear Box Jack Bolt Mounting Bar | $76.76 | Quantity |
| 14 | PA-000041 | Adjustment Jack Screw | $10.00 | Quantity |
| 15 | D-2DM-04-000-0008-A | Gear Box Top Mounting Plate | $79.43 | Quantity |
| 16 | D-2DM-00-010-0721-D | Inner Left End Plate | $350.00 | Quantity |
| 17 | PA-000035 | Drive Shaft Hardware Set | $6.50 | Quantity |
| 18 | PA-000042 | End Plate Home Side Cover | $27.78 | Quantity |
| 19 | D-2DM-04-000-0018-A | Lower Gear Box Mount | $114.18 | Quantity |
| 20 | D-2DM-04-000-0023-A | End Plate Gear Box Cover | $63.33 | Quantity |
| 21 | D-2F-02-011-0376-DM | X Axis Drive Shaft | $191.75 | Quantity |
| 22 | D-2DM-00-010-0720-D | Outer End Plate | $350.00 | Quantity |
| 23 | PA-000043 | Track Bracket Mounting Bar | $52.22 | Quantity |
| 24 | D-2DM-04-000-0020-A | Gantry Mounting Plate Home Side | $169.71 | Quantity |
| 25 | PA-000044 | End Plate Park Side Cover | $10.00 | Quantity |
| 26 | RG20-010-AH08 | X Axis Gear Box | $2965.08 | Quantity |
| 27 | 2030EX x 1 | 30 Tooth 1" wide 5/8" Bore Gear How to identify correct gear | $265.12 | Quantity |
| 28 | D-2DM-00-010-0740-A | Outer End Plate Mounting Bar | $38.89 | Quantity |
| 29 | D-2DM-01-002-0744-A | Adjustment Angle End Cap | $26.66 | Quantity |
| 30 | PA-000045 | Splatter Shield Spacer | $10.00 | Quantity |
|
