HVAC Stepper Gantry

HVAC Stepper Gantry

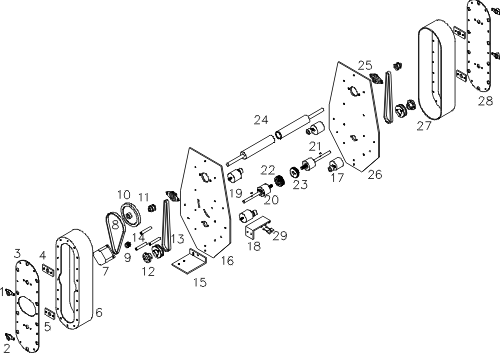

Click on diagram for larger image

# in Diagram Part NumberPart Description Price

1AB-WC-S10-XNUpper Drive Shaft End Bushing$26.19Quantity
2$Quantity
3D-8H-05-000-0068A-CX Axis Motor Side Belt Cover$124.71Quantity
4D-8H-04-000-0064A-AUpper Drive Shaft End Bushing Backing Plate$15.85Quantity
5D-8H-04-000-0065A-ALower Drive Shaft End Bushing Backing Plate$15.85Quantity
6D-8H-04-001-0067A-DMotor Side End Plate Casting$274.24Quantity
8225L050KX Axis Motor Belt$30.56Quantity
910LF050 x 1/2X Axis Motor Pulley$47.25Quantity
1040L050 x 5/8Upper Drive Shaft 40 Tooth Pulley$162.55Quantity
11$Quantity
1218LG050JA - JA x 1/2Lower Drive Shaft Pulley & Sleeve$135.87Quantity
13270L050KShaft to Shaft Belt$38.08Quantity
14D-8H-02-000-0050C-AX Axis Motor Standoff$22.63Quantity
15D-8H-02-000-0051A-CX Axis Track Bracket$123.20Quantity
16D-8H-02-001-0054C-DStandard Motor Side End Plate$347.08Quantity
17PA-000003Cam Follower Assembly$101.20Quantity
18D-8H-00-010-0707-AX Axis Proxy Mounting Bracket$64.38Quantity
19PA-000004Standard Lower Drive Shaft Assembly$305.13Quantity
20PA-000005Lower Drive Shaft Bearing Housing (Bearings Included, Shaft not included)$110.53Quantity
2169310# 3 Woodruff Key$2.00Quantity
222040S x 1/2-X40 Tooth 2" pinion 1/2" wide 1/2" bore nyloil Shouldered Gear How to identify correct gear$266.51Quantity
221632S-X32 Tooth 2" Pinion 1/2" wide 1/2" bore fiber/nyloil Shouldered Gear How to identify correct gear$217.52Quantity
231632NS-X32 Tooth 2" Pinion 1/2" wide 1/2" bore fiber/nyloil Nonshouldered Gear How to identify correct gear$119.91Quantity
232040NS x 1/2-X40 Tooth 2" pinion 1/2" wide 1/2" bore nyloil Nonshouldered Gear How to identify correct gear$168.78Quantity
24PA-0000065 ft Upper Drive Shaft$173.31Quantity
256910Upper Drive Shaft Nice Bearing$73.00Quantity
26D-8H-02-000-0054C-DStandard Nonmotor Side End Plate$315.52Quantity
27D-8H-04-000-0066A-DNonmotor Side End Plate Casting$282.24Quantity
28D-8H-04-000-0063A-CX Axis Nonmotor Side Belt Cover$124.71Quantity
29EZ-18TX Axis Proxy Switch$140.00Quantity
29E47BMS42Roller Switch$64.77Quantity
