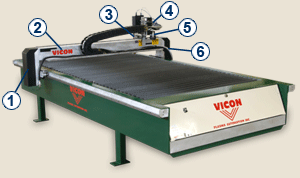

Fabricator-SS Plasma Cutting Table

1. Gantry Assembly Non-Guide Side
2. Gantry Body Assembly
3. • Torch Holder Pneumatic Height Control
   • Torch Holder Electronic Height Control
4. Carriage Motor Assembly
5. • Carriage Pneumatic Height Control
   • Carriage Electronic Height Control
6. Gantry Assembly Guide Side
